Pay in three equal instalments 3 x 479.67€Description

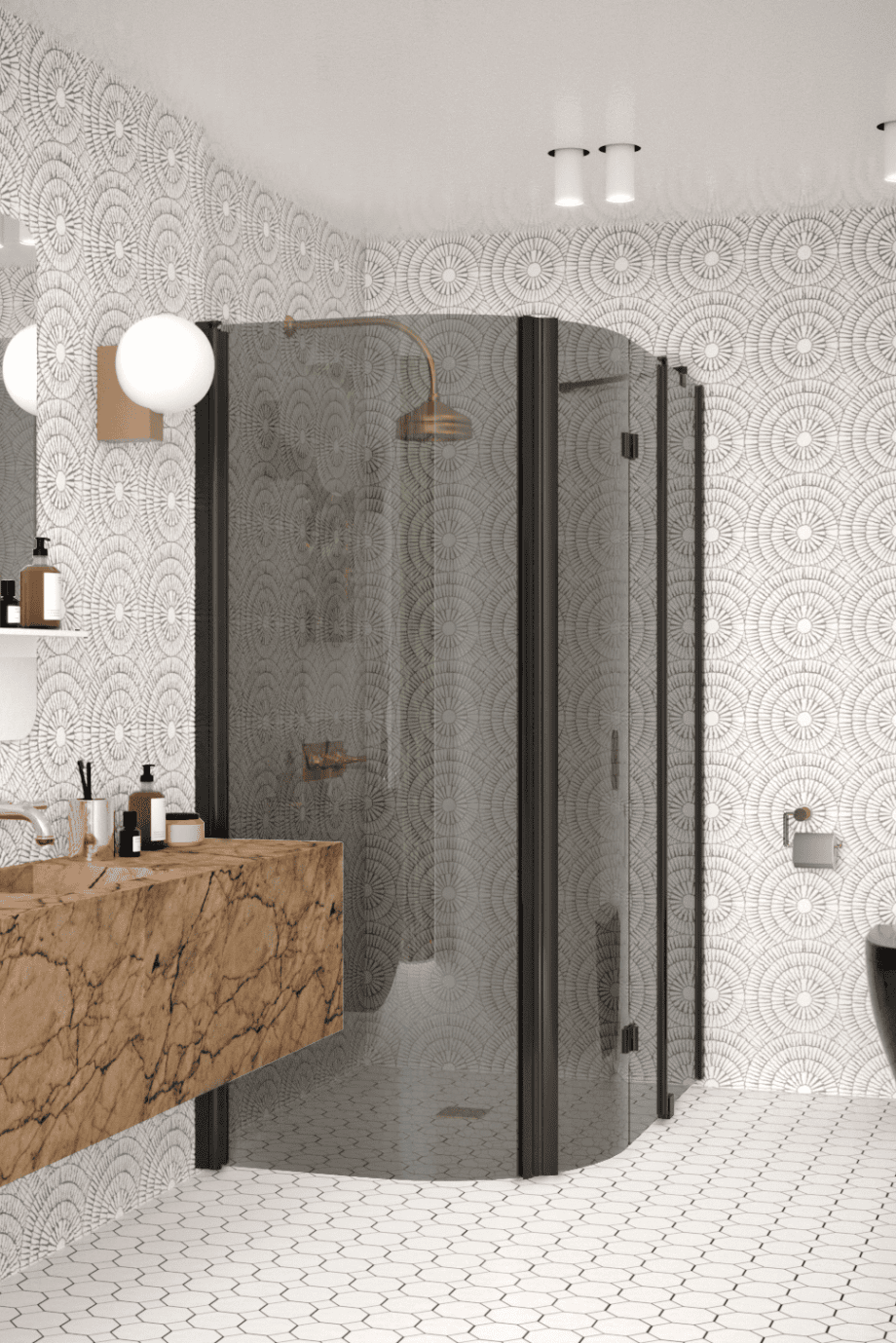

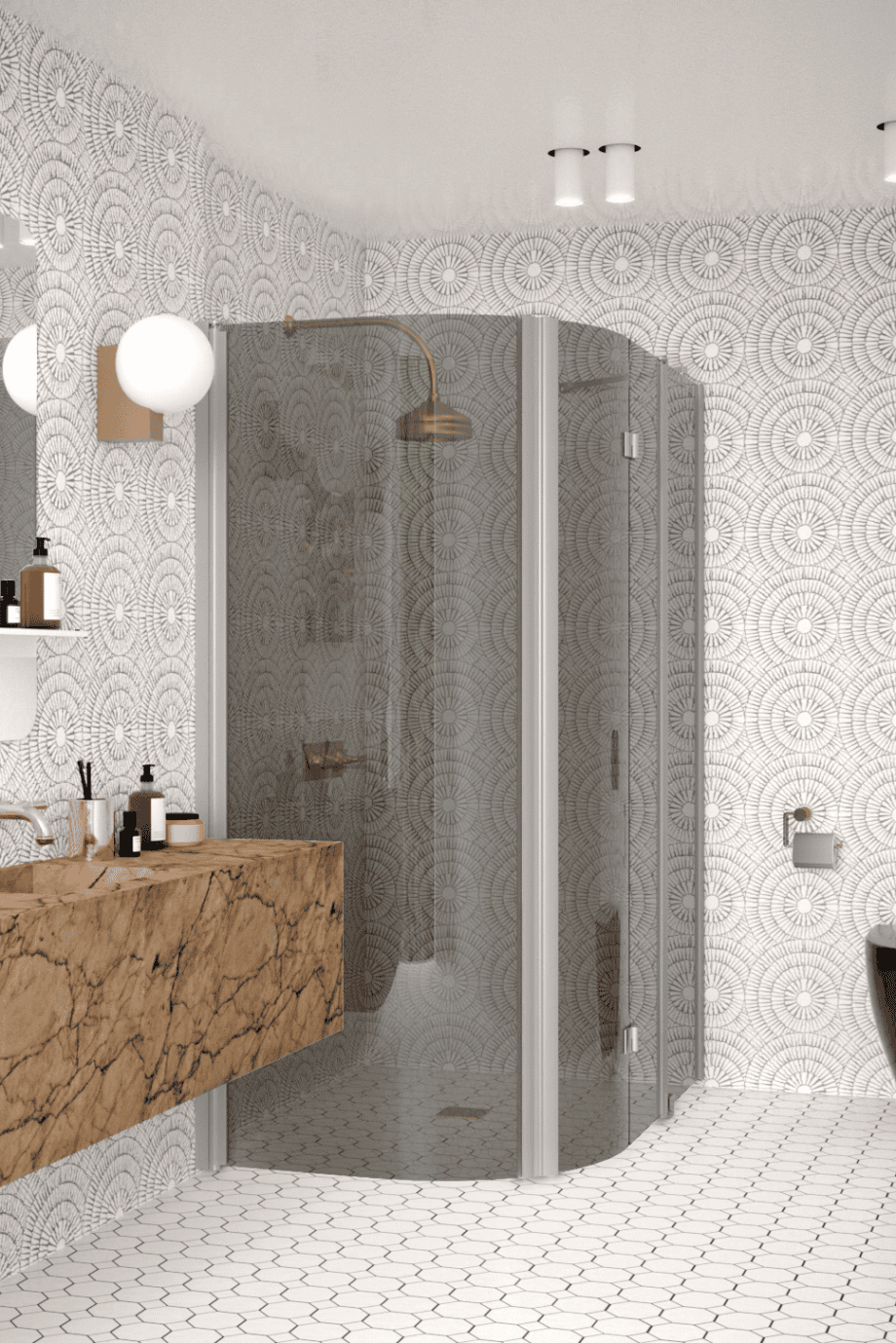

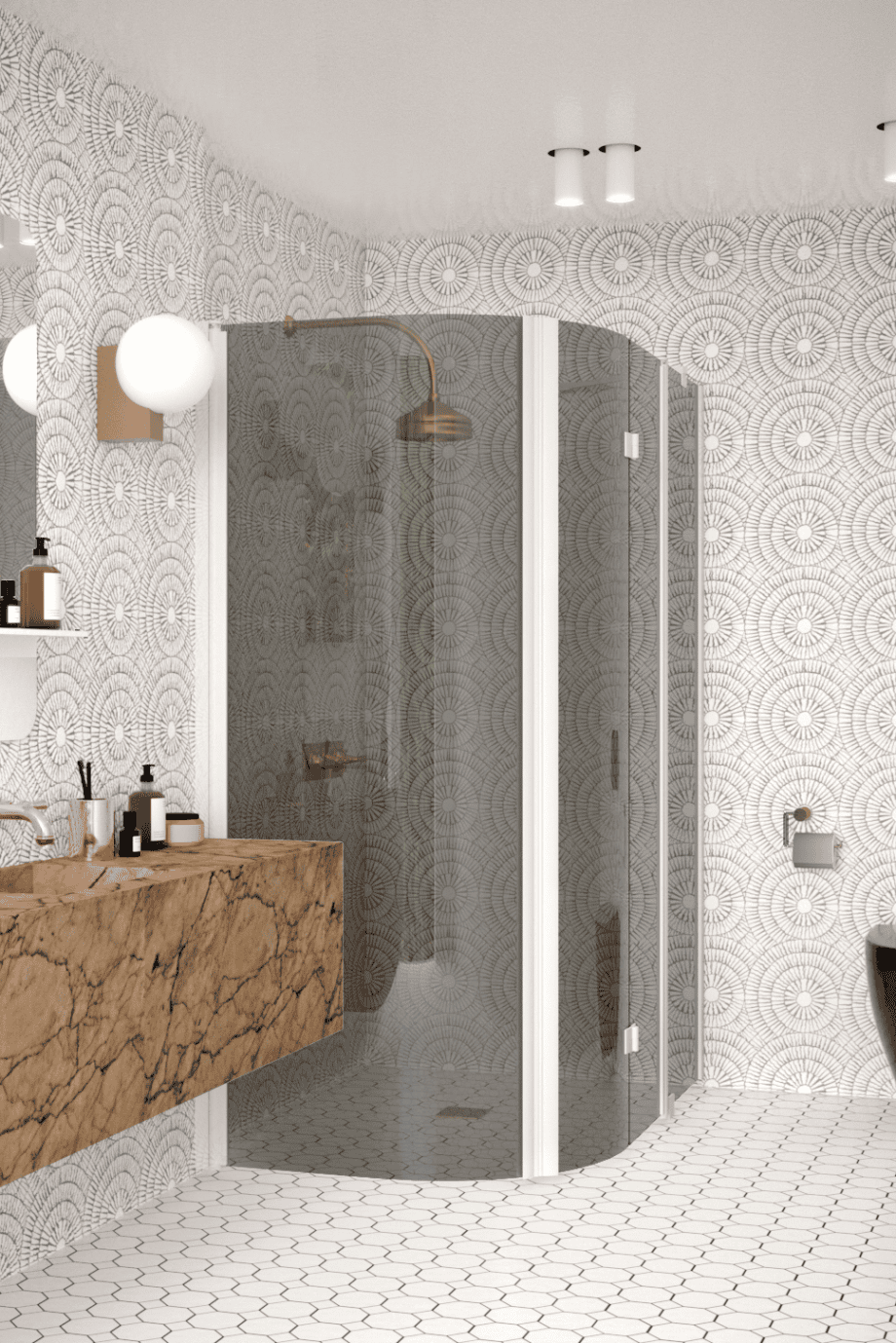

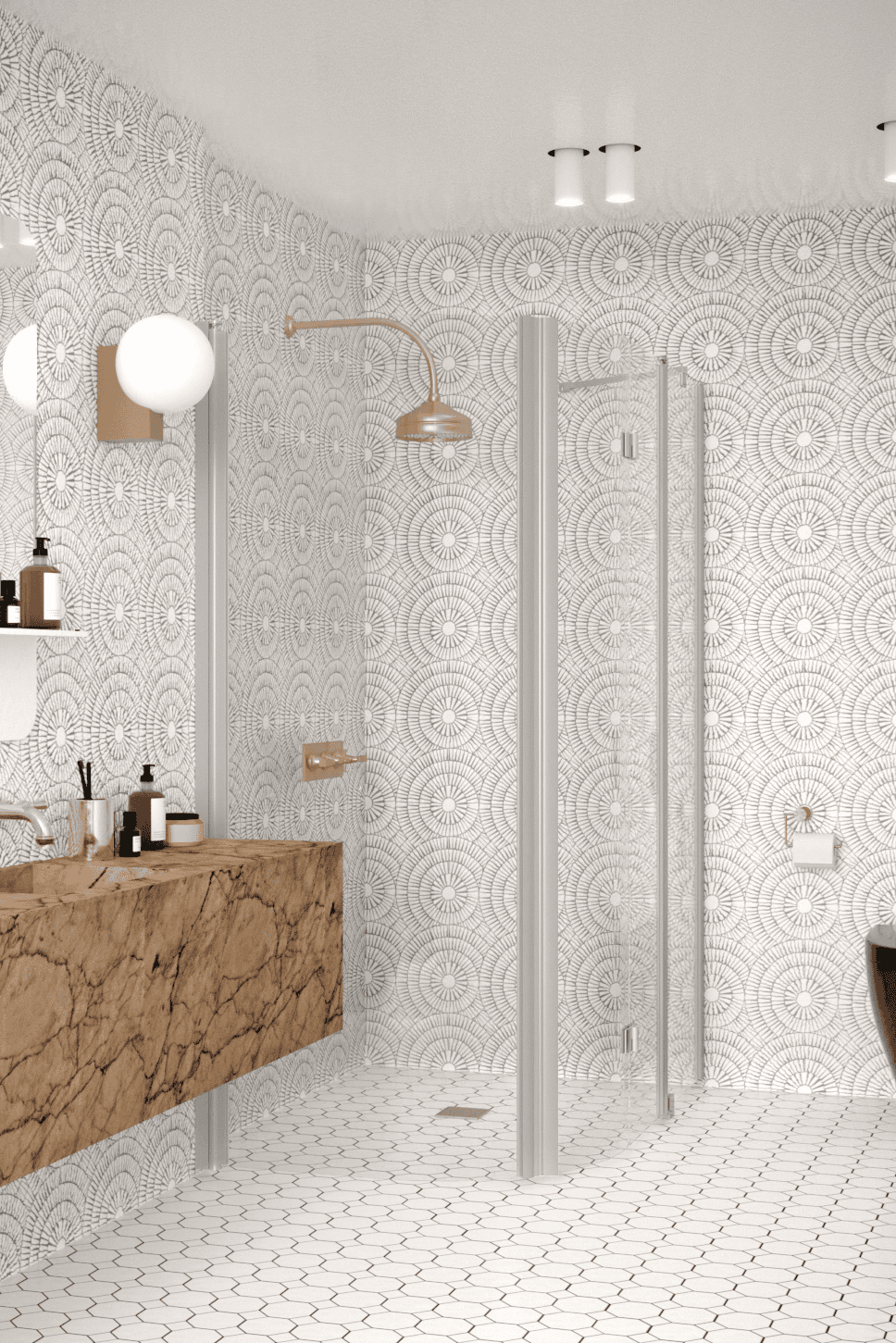

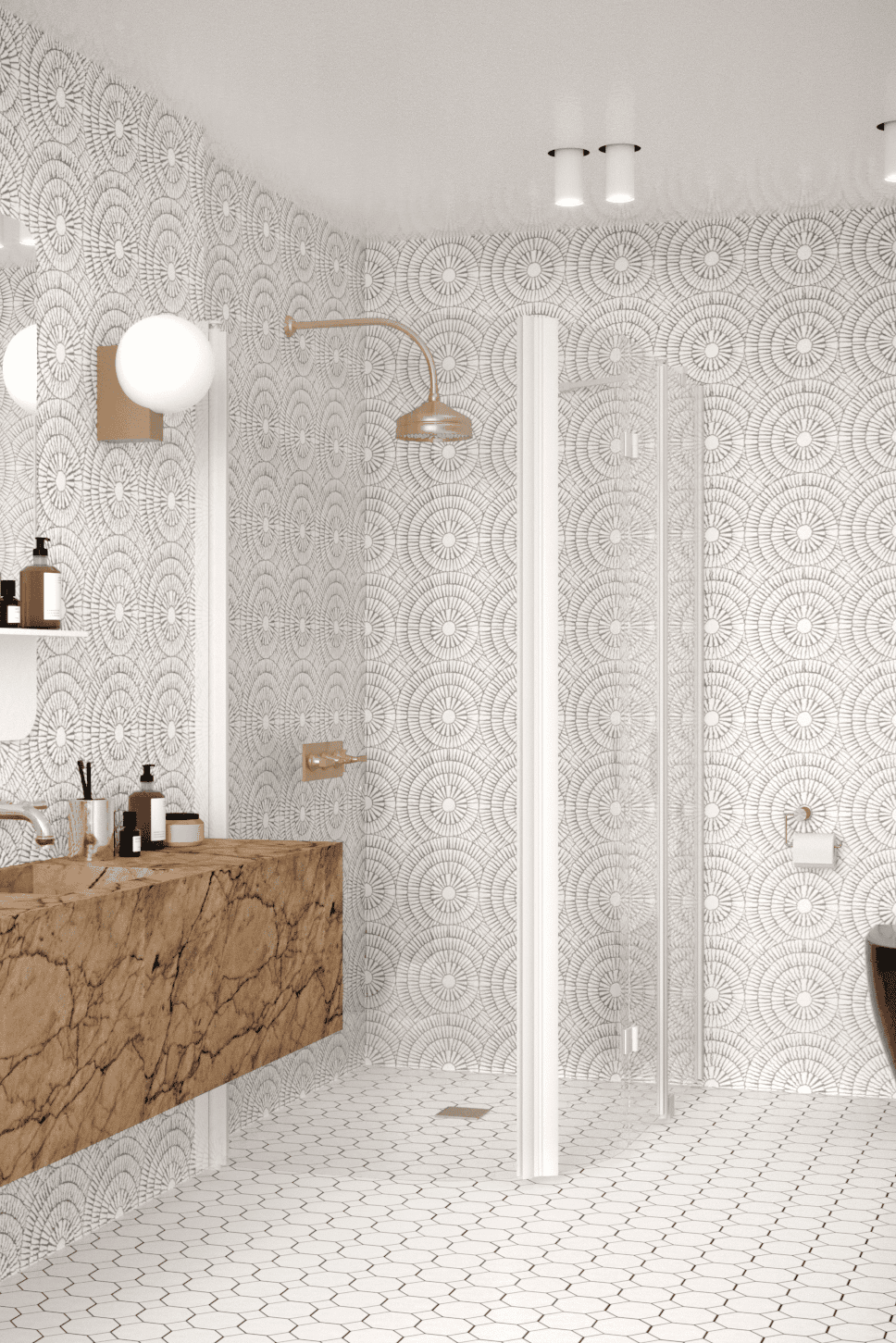

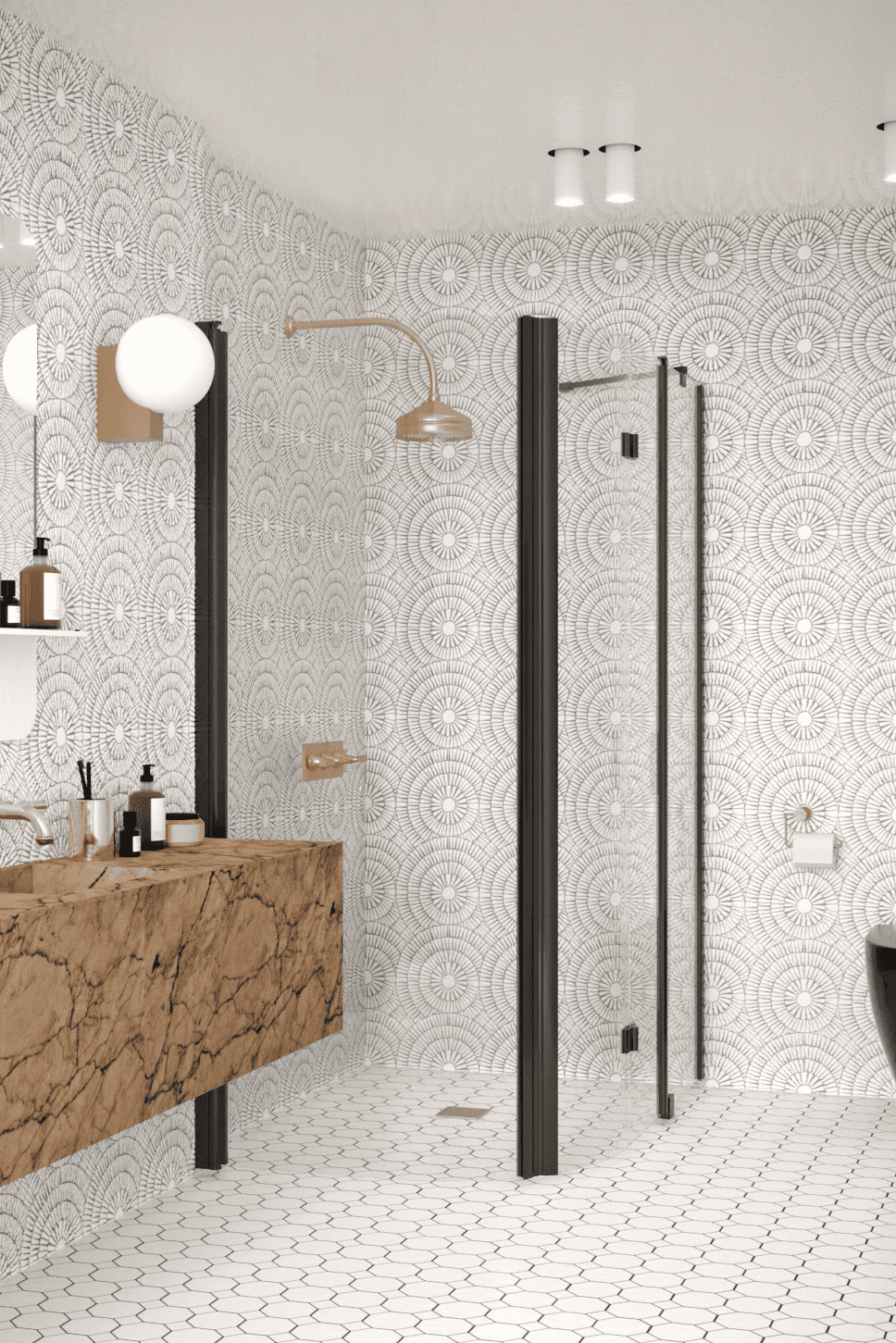

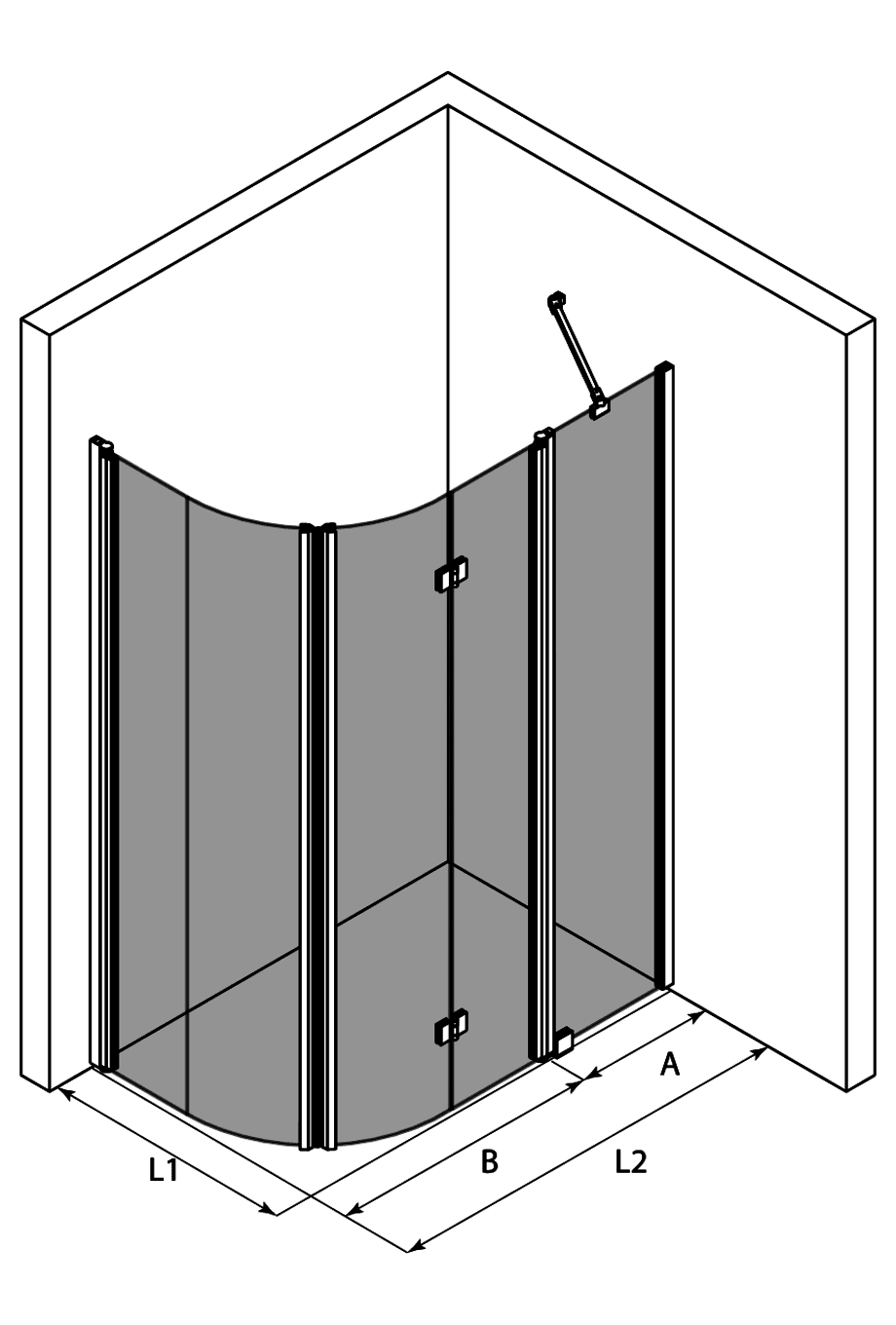

Curved shower enclosure Hietakari Infinia 272, hinged door + folding door with fixed part is a curved shower enclosure whose curved glass panels save space and give the shower area a soft line, made by the Finnish manufacturer Hietakari. The set consists of the following parts: Hinged door L1, Fixed panel A, Folding door B. The frame is available in white, aluminium or black, and you can choose clear or grey tinted glass. You choose the width of each panel on the product page – all standard sizes are the same price.
The hinged door opens 90° outwards and has an adjustable centring that returns the door to the open and closed positions. A pair of magnet handles keeps the door tightly closed while showering. The folding door folds together when opened and needs little space in front of the door – a good solution for a smaller bathroom.
Features
- 6 mm tempered safety glass (EN 12150)
- Frame colours: white (RAL 9016), aluminium and black (RAL 9005)
- Glass: clear or grey
- Height 1900 mm, width according to the selected size
- 35 mm adjustment tolerance for uneven walls
- Made in Finland – Hietakari
Installation

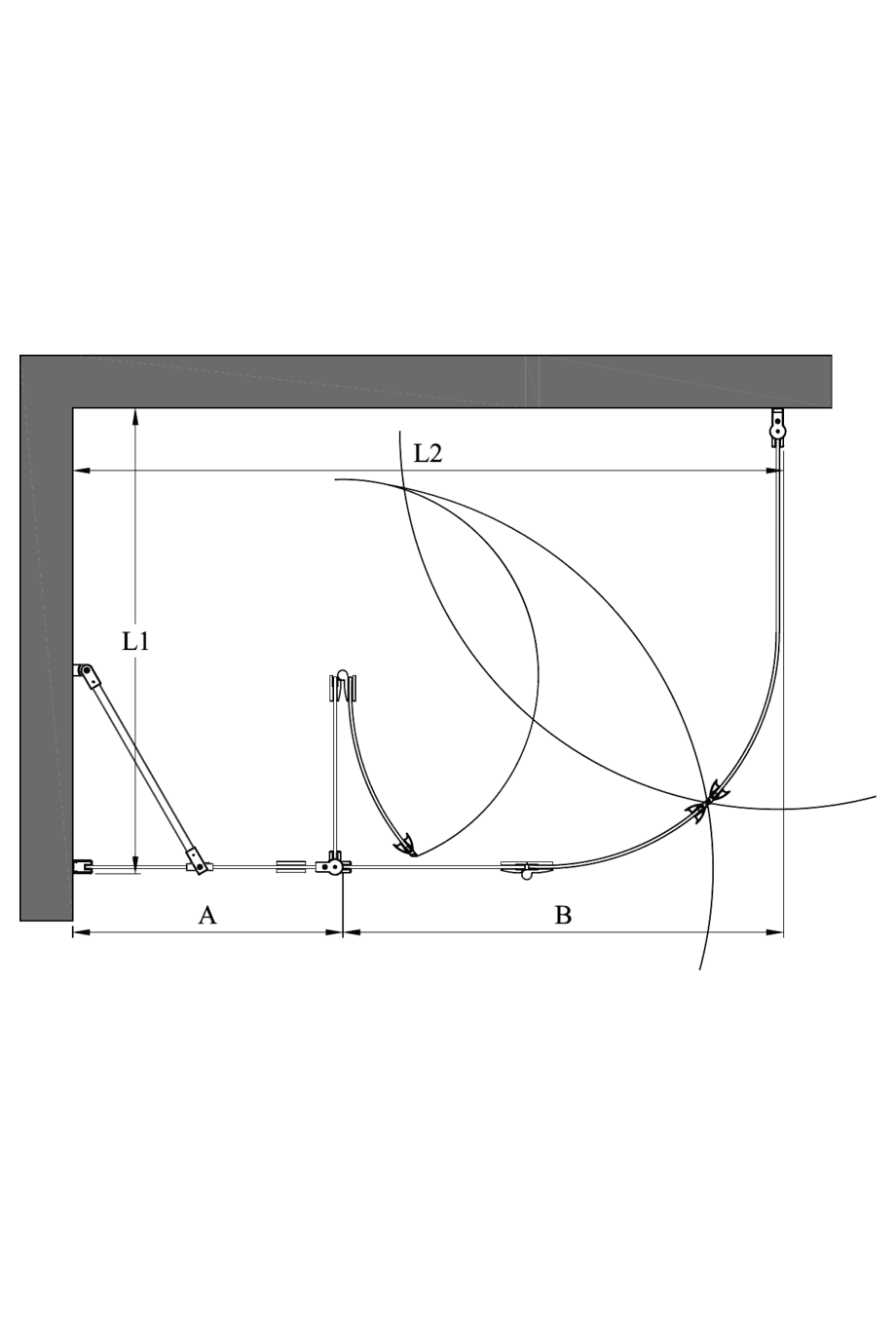

The glass panels are attached from the sides to the building walls with wall profiles. The fixed wall is supported at the top by a brace bar and at the bottom by a fitting glued to the floor. There is a gap of about 25 mm between the fixed panel and the floor, which can be closed with the seal supplied as standard. The parts can also be installed in the opposite direction to the one shown in the drawing.
Frame and fittings
The profiles are made of aluminium. White (RAL 9016) and black (RAL 9005) are powder coated, the aluminium finish is anodized and sandblasted so that fingerprints do not show. The fittings are made of brass alloy and match the frame colour: white or black fittings with white and black frames, chrome-plated fittings with the aluminium frame.
Glass
The curved panels are made of 6 mm tempered safety glass (EN 12150). You can choose clear or grey tinted glass – both are smooth and transparent. Cranith anti-limescale coating can be added at the factory to help the glass stay clean longer.
Sizes and adjustment
The height is 1900 mm. The wall profiles have a total adjustment tolerance of 35 mm for levelling tilted walls and fitting the product into the opening. A 34 mm extension profile can be added if needed. For a custom size, ask us for a quote.
Water tightness
A 28 mm high floor seal is supplied as standard. If the floor slope in the shower area is steeper than usual, choose the 50 mm high seal. A step profile (10 mm high, 16 mm wide) can be installed under the door to improve water tightness further.
Documents
You will find the dimension drawing and installation instructions as PDF files under the documents on the product page. Feel free to ask us for advice – we will help you choose the right model, sizes and accessories.
